Superfrp™ grating Mould is used by special module and assembled on the large moulding board. There is assembled the glide framework on the middle of the mould. It can help mould to take off the grating.Superfrp™ grating mould is producted by common steels, aluminums or stainless steels. NanTong Super Composite Material Co. Ltd can product single layer mold gating and double layer mold grating. We can design and manufacture mold grating for any grating need.



HOW TO CHOOSE THE GRATING MOULD:

1:the choice of the mould material: It needs use different kind of mould material for different kind of resin.It can use the material of common steels or aluminums for the Orthophalic polyester resin, Isophthalic polyester resin and Vinyl ester resin.But the grating of Phenolic resin need use the material of stainless steels.

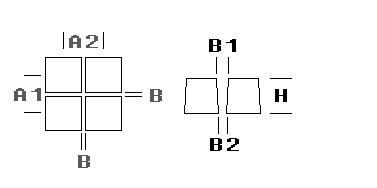

2:the choice of the mould specification: First you need confirm the Mesh size of the grating, secondly you need confirm the thickness of the grating,finally you need confirm the Panel size of the graing.

ThicknessH(mm)
Panel size£¨mmm£©
Mesh size£¨mm£©
Bar thick£¨mm£©
grating thickness
mould thickness
A1¡ÁA2
B1
B2
25.4
30
38.1
40
50.8
26.5
32
39
42
52
1007¡Á2007
40¡Á40
7
5
1007¡Á3007
7
5
1007¡Á4007
7
5
1220¡Á3660
38.1¡Á38.1
7
5
1220¡Á3660
38.1¡Á38.1/19¡Á19
7
5
1220¡Á3660
50.8¡Á50.8
8
5

We can design and manufacture grating mold for any grating
